Equipped with a 35mm PL mount, the PL 25-300mm boasts a high zoom ratio covering the focal length of 25mm to 300mm. Like all Cabrio zooms, the PL 25-300mm supports an optional detachable drive unit for electric zooming, focusing and iris. Mounting the unit enables remote control of zoom, focus, and iris adjustment. It can be used as a self-contained ENG-style or cine style lens. When used without the drive, industry-standard cine motors can be fitted.
Designed using the latest proprietary optical simulation software, the PL 25-300mm offers exceptional optical performance in the center of the image and in the corners of the frame. The digital servo’s 16-bit encoding assures operators that all lens data output—including the position of the zoom, iris, and focus—is extremely accurate. The zoom supports Lens Data System (LDS) and /i Technology metadata formats, and can be controlled using cinema industry standard wireless controllers as well as existing Fujinon wired and wireless units.
Focal Length | 25-300mm |
Max Aperture | T3.5 |
Format | Super 35 |
Image Circle* | Ø31.5mm* |
Lens Mount | PL |
Min. Focus | 4' |
Front Dia. | 136mm |
Filter Thread | None |
Iris Blades | 9 |
Optical Layout | |
Body Material | Anodized Aluminum |
Data Protocol | |
Length | 1' 3" |
Weight | 18.5 lbs. |

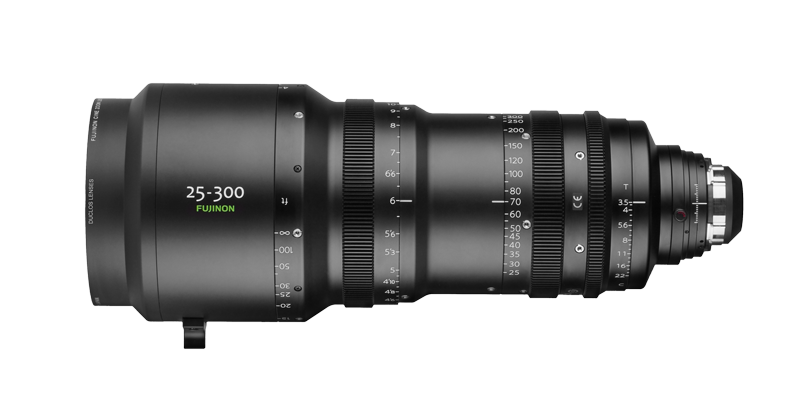

- Fujinon 25-300mm T3.5 Premier Cabrio Lens
- Front/Rear Caps
